The Waterview

Plan #:
0205
DATA
Plan #:
0205
FIRST FLOOR1,490 SF
SECOND FLOOR*1,449 SF
TOTAL FINISHED AREA2,939 SF
BASEMENT1,451 SF
GARAGENONE
BEDROOMS4
BATHS2.5
FOUNDATIONBASEMENT
EXTERIOR WALL2X4 / BRICK

*second floor excludes stair area

DESCRIPTION

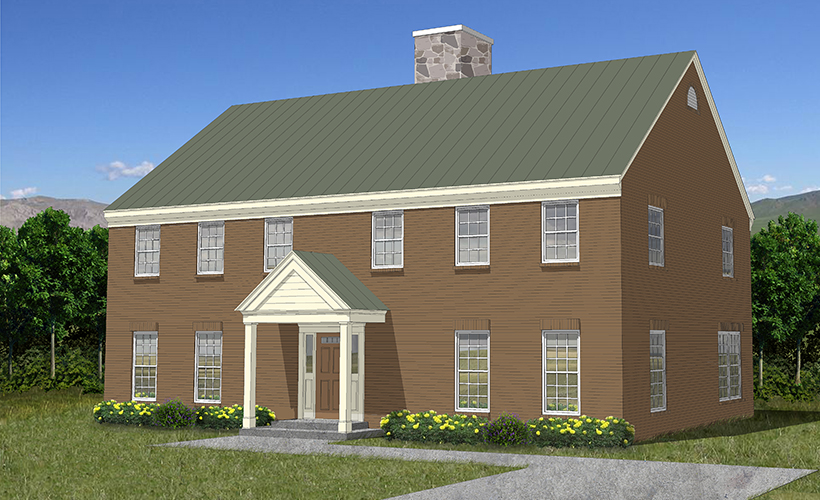

The Waterview was inspired by the classic Georgian Colonial style popular in New England and the Southern colonies during the 1700s. Our design shares many of the architectural details: restrained symmetry, simple massing, small-paned double-hung windows aligned at the first and second floors, and exterior brick facing.

A large entry foyer is flanked by a book-lined library/study on the right and an elegant dining room in the left. Ahead is a massive stone chimney with a stairway cascading along the side leading to the second floor.

On the other side of the chimney, a large stone fireplace is the center of interest for a gathering room leading into an eat-in kitchen. The laundry and powder rooms are conveniently located in an alcove off the kitchen.

Nine foot ceilings on the first floor give an airy, spacious feeling. Large triple windows take advantage of splendid garden views and allow abundant natural light to enter.

A large skylight centered above the stairs welcomes natural light on the second floor hall and stairway. Sunlight glistening on the stone chimney provides an enchanting accent.

The graceful master bedroom suite features a stone fireplace that shares the central chimney. A recessed tub, separate shower, and large walk-in closets complete the master suite.

There are three additional bedrooms and a hall bath on the second floor.

PDF Reproducible Set – You will receive one full set of construction drawings in PDF format. A PDF Reproducible Set provides a license to print unlimited copies you may need for bid requests, the builder, local building officials, and yourself. This is a license for the purchaser to build ONE house.



CAD File – You will receive one full set of construction drawings in AutoCAD format. This allows a design professional to make modifications in AutoCAD compatible software. Please consult a design professional before purchasing. A complimentary PDF will be included with a CAD File purchase. This is a license for the purchaser to build ONE house.



Multi-use License – If you are a builder and would like a Multi-use License to build one of our homes more than once, please contact us at jhricko@verizon.net

Office phone: 540-341-8850 Monday-Friday 8:30-5:30 EST



Our plans may not be returned for credit or refund under any circumstances once the order has been processed. Please double check your selection carefully before placing your order and talk to a design professional if needed. It is also very important that you check the dimensions of your lot taking into account the zoning/building restriction lines (setbacks) before placing your order.

The Waterview Plans (CAD)
$3,000.00

A complimentary PDF is included with CAD file

The Waterview Plans (PDF)
$2,200.00
