The Newman

Plan #:
0104
DATA
Plan #:
0104
GARAGE*908 SF
SECOND FLOOR730 SF
TOTAL1,638 SF
BEDROOMS1
BATHS1
FOUNDATIONSSLAB
EXTERIOR WALL2X4

*garage level excludes stair area

DESCRIPTION

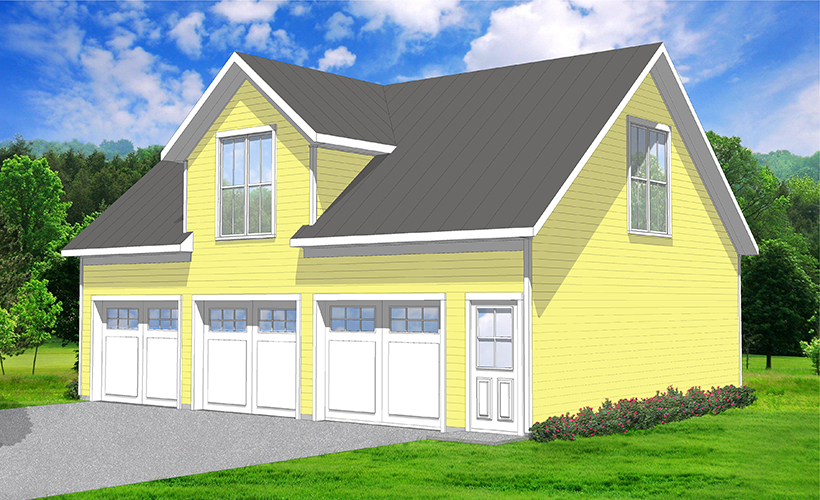

The Newman features a three-car garage with deeper dimensions than standard size garages providing space for a workshop and storage.

The second floor apartment features cathedral ceilings in each room and large windows to take advantage of natural light and views.

The open living-dining-kitchen area create an airy, spacious interior. A roomy bedroom and closet provide comfort and simplicity.

The low roof line with large dormers creates a subtle, beautiful presence.

PDF Reproducible Set – You will receive one full set of construction drawings in PDF format. A PDF Reproducible Set provides a license to print unlimited copies you may need for bid requests, the builder, local building officials, and yourself. This is a license for the purchaser to build ONE house.



CAD File – You will receive one full set of construction drawings in AutoCAD format. This allows a design professional to make modifications in AutoCAD compatible software. Please consult a design professional before purchasing. A complimentary PDF will be included with a CAD File purchase. This is a license for the purchaser to build ONE house.



Multi-use License – If you are a builder and would like a Multi-use License to build one of our homes more than once, please contact us at jhricko@verizon.net

Office phone: 540-341-8850 Monday-Friday 8:30-5:30 EST



Our plans may not be returned for credit or refund under any circumstances once the order has been processed. Please double check your selection carefully before placing your order and talk to a design professional if needed. It is also very important that you check the dimensions of your lot taking into account the zoning/building restriction lines (setbacks) before placing your order.

The Newman Plans (CAD)
$2,000.00

A complimentary PDF is included with CAD file

The Newman Plans (PDF)
$1,200.00
