The Homestead

Plan #:
0102
DATA
Plan #:
0102
GARAGE*1,477 SF
SECOND FLOOR1,545 SF
TOTAL3,022 SF
BEDROOMS1
BATHS1.5
FOUNDATIONSLAB
EXTERIOR WALL2X4

*garage level excludes stair area

DESCRIPTION

The Homestead is a large carriage house designed to appear as a single-family house. There are four parking bays; two face the front and two are approached from the side. The garage has two storage / workshop alcoves and a half-bath.

The plan lends itself to a slightly sloping site with the side garage bays 24” lower than the front garage bays.

The second floor offers two options: a single, spacious loft for studio use or a stunning apartment.

The apartment highlights an exquisite living-dining area with cathedral ceilings, tall windows, and an outdoor deck. A full galley kitchen with a convenient pass-through eating bar at the dining space creates an elegant, casual atmosphere.

A dramatic sunroom with skylights and outdoor decks on two sides provides year-round enjoyment of natural light and outdoor views encouraging alfresco living.

The elegant master bedroom suite features a cathedral ceiling, tall pointed-arch windows, and access to a deck.

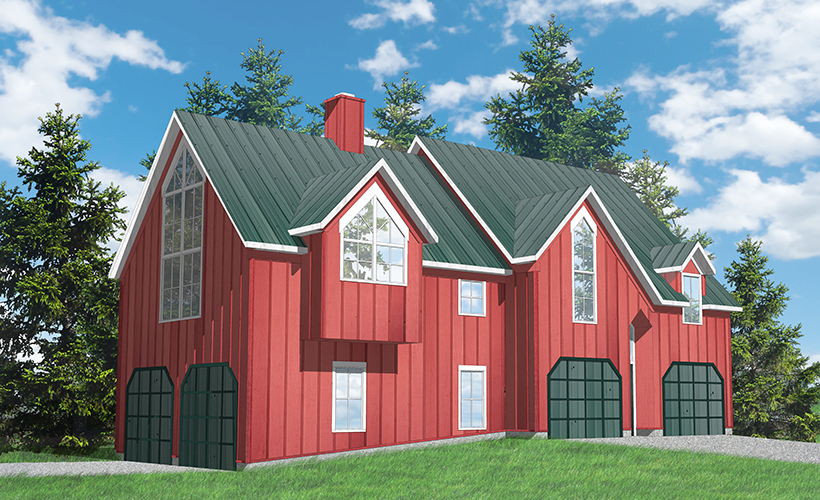

The exterior is as captivating as the interior featuring a standing-seam metal roof, projecting bays, board and batten siding, and tall pointed-arch windows.

PDF Reproducible Set – You will receive one full set of construction drawings in PDF format. A PDF Reproducible Set provides a license to print unlimited copies you may need for bid requests, the builder, local building officials, and yourself. This is a license for the purchaser to build ONE house.



CAD File – You will receive one full set of construction drawings in AutoCAD format. This allows a design professional to make modifications in AutoCAD compatible software. Please consult a design professional before purchasing. A complimentary PDF will be included with a CAD File purchase. This is a license for the purchaser to build ONE house.



Multi-use License – If you are a builder and would like a Multi-use License to build one of our homes more than once, please contact us at jhricko@verizon.net

Office phone: 540-341-8850 Monday-Friday 8:30-5:30 EST



Our plans may not be returned for credit or refund under any circumstances once the order has been processed. Please double check your selection carefully before placing your order and talk to a design professional if needed. It is also very important that you check the dimensions of your lot taking into account the zoning/building restriction lines (setbacks) before placing your order.

The Homestead Plans (PDF)
$1,500.00
