The Hillside

Plan #:
0103
DATA
Plan #:
0103
GARAGE*862 SF
SECOND FLOOR928 SF
TOTAL1,790 SF
BEDROOMS1
BATHS1
FOUNDATIONSLAB
EXTERIOR WALL2X4

*garage level excludes stair area

DESCRIPTION

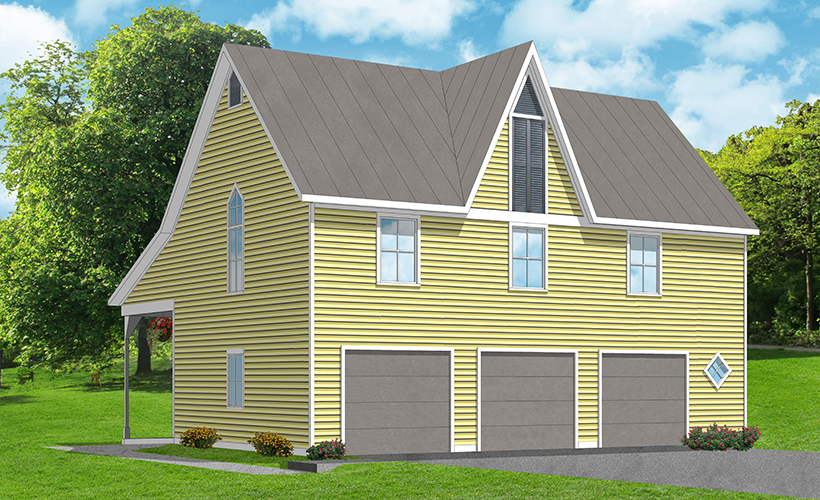

The Hillside features a three-car garage and a covered parking area that can accommodate a horse trailer or parking for two cars in tandem.

The second floor apartment has a spacious living-dining area with a skylight and cathedral ceiling providing an open, airy interior.

Built-in shelves and an efficiently designed kitchen off the living area add convenience and charm.

A large bedroom, closet, and additional attic storage offer comfortable living space.

The exterior front facing gable with tall window and refined symmetry create understated elegance that make this structure an asset to any property.

PDF Reproducible Set – You will receive one full set of construction drawings in PDF format. A PDF Reproducible Set provides a license to print unlimited copies you may need for bid requests, the builder, local building officials, and yourself. This is a license for the purchaser to build ONE house.



CAD File – You will receive one full set of construction drawings in AutoCAD format. This allows a design professional to make modifications in AutoCAD compatible software. Please consult a design professional before purchasing. A complimentary PDF will be included with a CAD File purchase. This is a license for the purchaser to build ONE house.



Multi-use License – If you are a builder and would like a Multi-use License to build one of our homes more than once, please contact us at jhricko@verizon.net

Office phone: 540-341-8850 Monday-Friday 8:30-5:30 EST



Our plans may not be returned for credit or refund under any circumstances once the order has been processed. Please double check your selection carefully before placing your order and talk to a design professional if needed. It is also very important that you check the dimensions of your lot taking into account the zoning/building restriction lines (setbacks) before placing your order.

The Hillside Plans (CAD)
$2,000.00

A complimentary PDF is included with CAD file

The Hillside Plans (PDF)
$1,200.00
